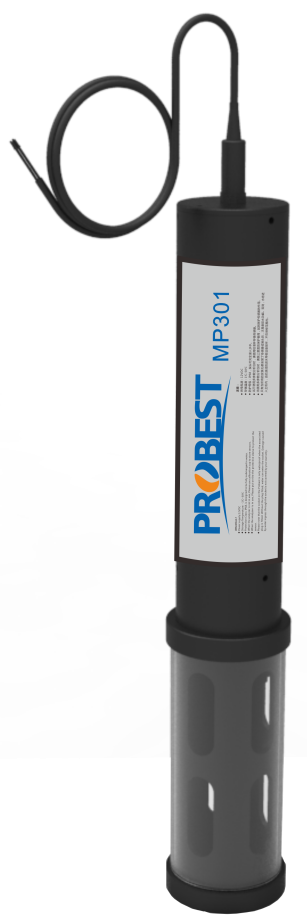

product name :MP301 Multi-Parameter Analyzer

MP301 Multi-Parameter online analyzer is suitable for long-term field on-line monitoring.It can achieve the function of data reading,data storage and real-time online measurement of temperature,depth,pH,conductivity,salinity,TDS,turbidity,DO,chlorophyll and blue-green algae at the same time.

Features:

  • Optional self-cleaning system to get accurate data for a long time.
  • Can see and collect data in real time used with platform software.Calibrate and record 49,000 times test data(Can record 6 to 16 probes’ data a time ),can simply connected with the existing network for a simple combination.
  • Equipped with all kinds of length of extension cables. These cables support internal and external stretch and 20 kg of bearing.
  • Can replace the electrode in the field, maintenance is simple and quick.
  • Can flexibly set the sampling interval time, optimize the work / sleep time to reduce the power consumption.

Software Functions:

  • Operation software of Windows interface has the function of settings,online monitoring,calibration and Historical data download.
  • Convenient and efficient parameters settings.
  • Real-time data and curve display can help users intuitively obtain the data of measured water bodies.
  • Convenient and efficient calibration functions.
  • Intuitively and accurately understanding and tracking the parameters’ changes of the measured water bodies in a certain period through the Historical data download and curve display.

Application:

● Multi-Parameter water quality online monitoring of rivers, lakes and reservoirs.

● Water quality online monitoring of drinking water source.

● Water quality online monitoring of ground water.

● Water quality online monitoring of sea water.

Mainframe Physical Indicators:

Power supply

12V

Measuring temperature

0-50℃

(non-freezing)

Power consumption

3W

Storage temperature

-15~55℃

Digital communication

MODBUS  RS485

Protection rate

IP68

Dimensions

Diameter

90mm*Length 600mm

Weight

3KG

Standard Electrode Parameters:

Depth

Principle

Range

Resolution

Accuracy

Pressure-sensitive Method

0-61m

2cm

±0.3%

Temperature

Principle

Range

Resolution

Accuracy

Thermistor method

0℃~50℃

0.01℃

±0.1℃

pH

Principle

Range

Resolution

Accuracy

Glass electrode method

0-14 pH

0.01 pH

±0.1pH

Conductivity

Principle

Range

Resolution

Accuracy

A pair of platinum gauze electrode

1us/cm-2000 us/cm(K=1)

100us/cm-100ms/cm(K=10.0)

0.1us/cm~0.01ms/cm(Depending on the range)

±3%

Turbidity

Principle

Range

Resolution

Accuracy

Light scattering method

0-1000NUT

0.1NTU

± 5%

DO

Principle

Range

Resolution

Accuracy

Fluorescence

0 -20 mg/L;0-20 ppm;0-200%

0.1%/0.01mg/l

± 0.1mg/L<8mg/l

± 0.2mg/L>8mg/l

Chlorophyll

Principle

Range

Resolution

Accuracy

Fluorescence

0-500 ug/L

0.1 ug/L

±5%

Blue-green algae

Principle

Range

Resolution

Accuracy

Fluorescence

100-300,000cells/mL

20 cells/mL

±5%

Salinity

Principle

Range

Resolution

Accuracy

Converted by conductivity

0~1ppt (K=1.0)

0~70ppt(K=10.0)

0.001ppt~0.01ppt(Depending on the range)

±3%
